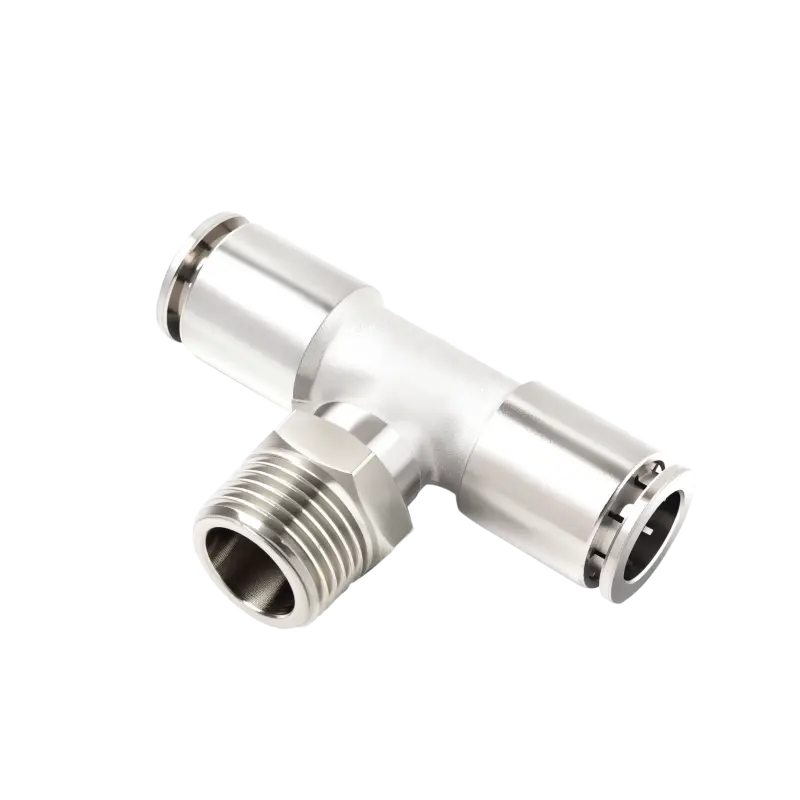

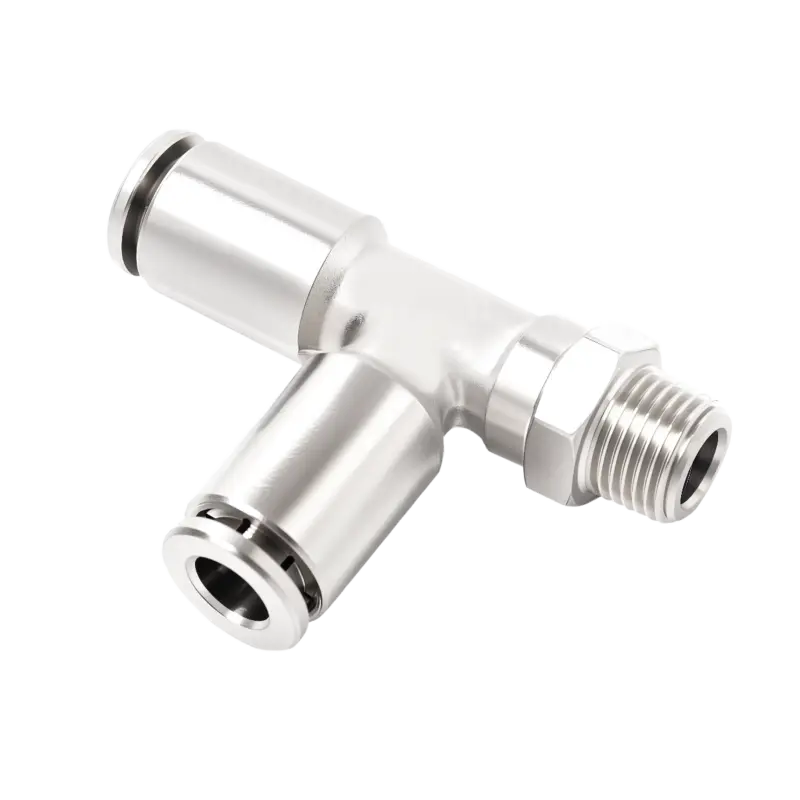

| PD-T type lateral thread push in fittings specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | L1 | L3 | H | S | T | D1 | D2 | |
| NPD4-M5 | 16 | 17 | 4.2 | 10 | M5 | 9 | 4 | |
| NPD6-01 | 24 | 24 | 7 | 12 | R1/8 | 12 | 6 | |
| NPD6-02 | 24 | 24 | 9 | 14 | R1/4 | 12 | 6 | |
| NPD6-03 | 24 | 24 | 10 | 17 | R3/8 | 12 | 6 | |
| NPD6-04 | 24 | 24 | 11.5 | 21 | R1/2 | 12 | 6 | |
| NPD8-01 | 26 | 27 | 7 | 12 | R1/8 | 14 | 8 | |
| NPD8-02 | 26 | 27 | 9 | 14 | R1/4 | 14 | 8 | |
| NPD8-03 | 26 | 27 | 10 | 17 | R3/8 | 14 | 8 | |
| NPD8-04 | 26 | 27 | 11.5 | 21 | R1/2 | 14 | 8 | |
| NPD10-01 | 30 | 31 | 7 | 12 | R1/8 | 16 | 10 | |
| NPD10-02 | 30 | 31 | 9 | 14 | R1/4 | 16 | 10 | |
| NPD10-03 | 30 | 31 | 10 | 17 | R3/8 | 16 | 10 | |
| NPD10-04 | 30 | 31 | 11.5 | 21 | R1/2 | 16 | 10 | |
| NPD12-02 | 31 | 32 | 9 | 14 | R1/4 | 18 | 12 | |
| NPD12-03 | 31 | 32 | 10 | 17 | R3/8 | 18 | 12 | |
| NPD12-04 | 31 | 32 | 11.5 | 21 | R1/2 | 18 | 12 | |

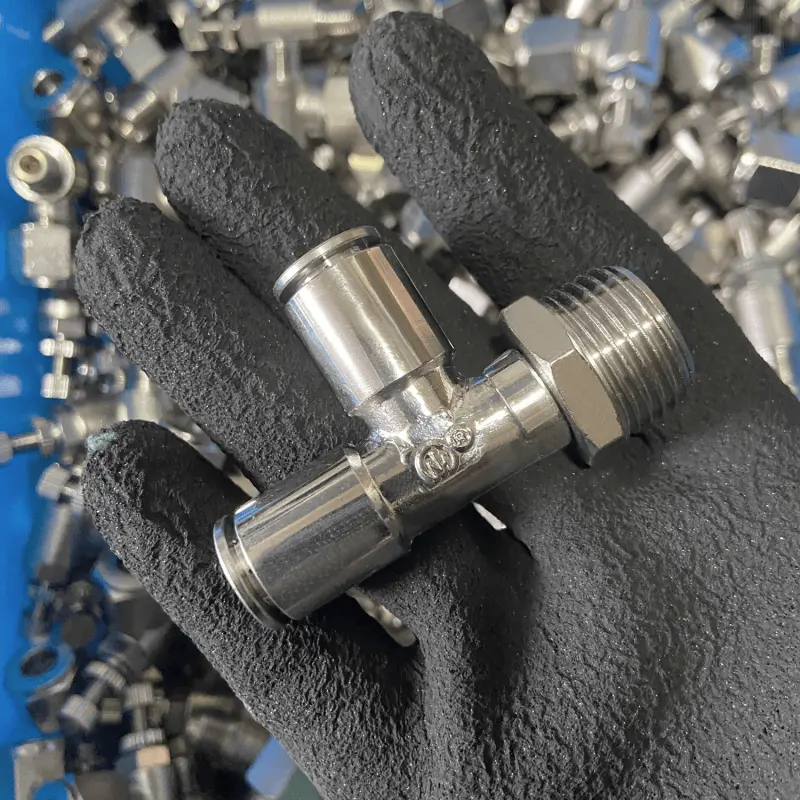

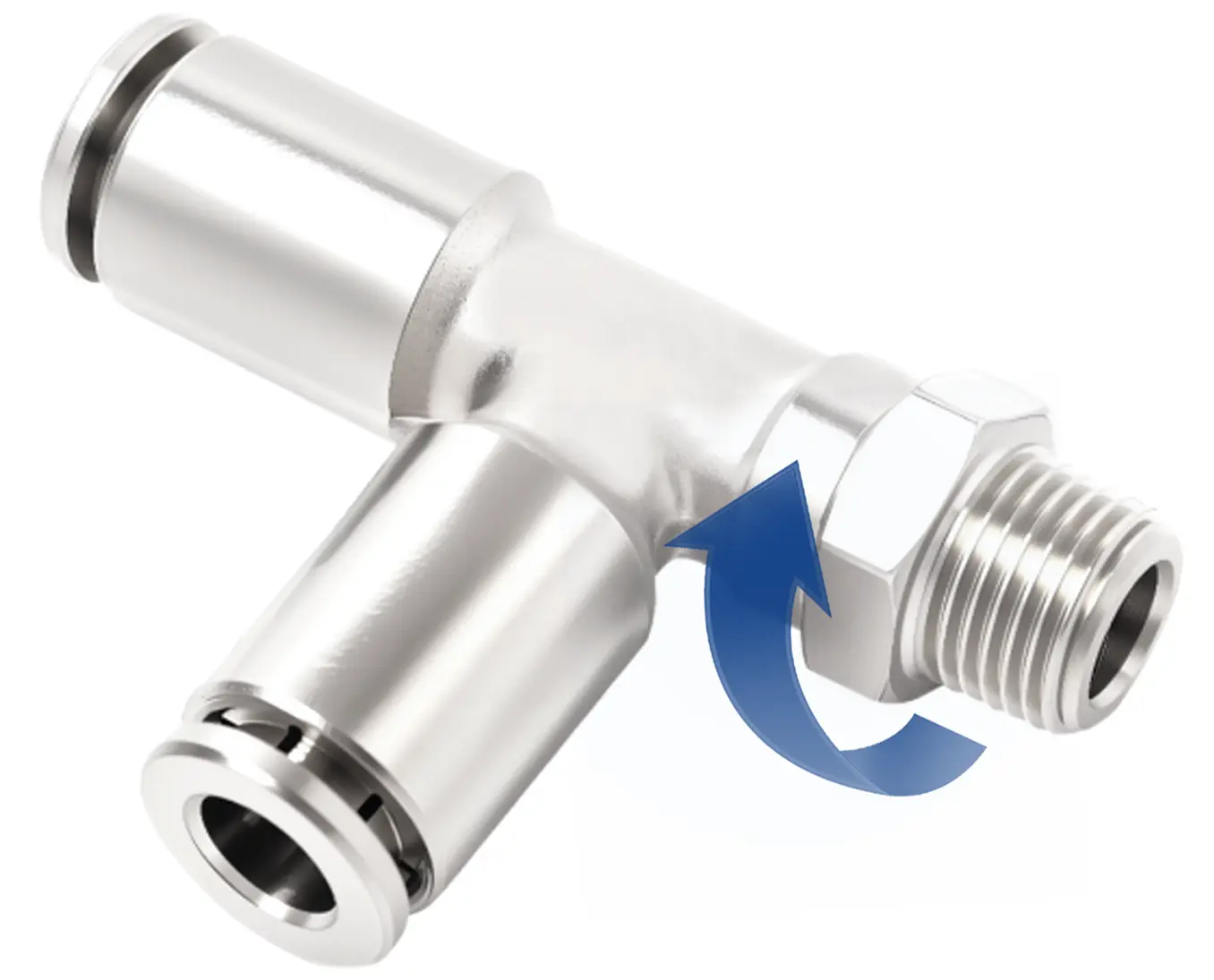

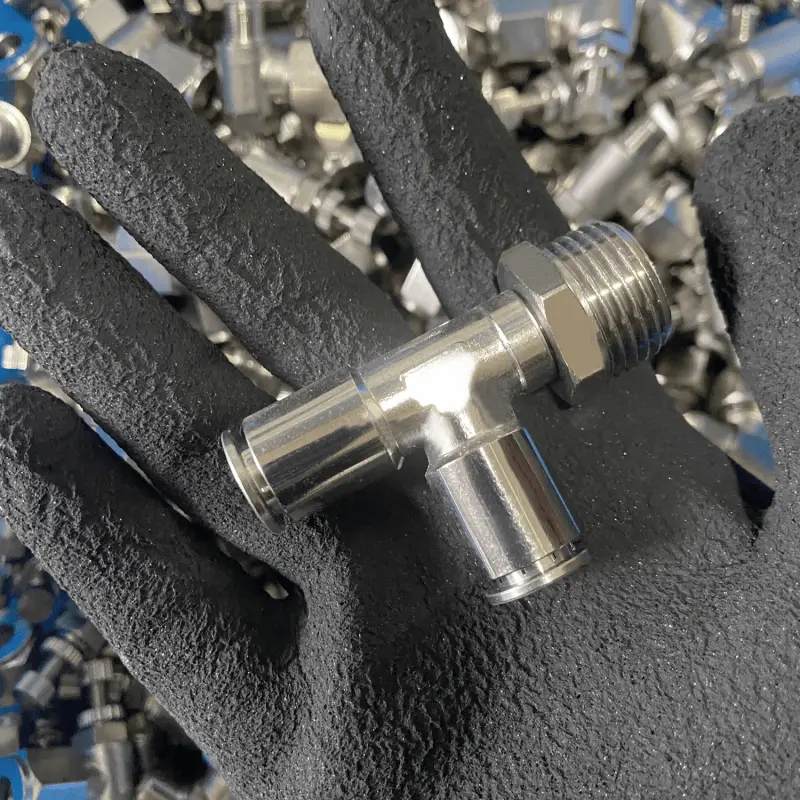

The innovative rotating thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.
Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.
The push-to-connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.
Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.
Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.
Industrial Machinery: Pneumatic tools, assembly lines, and automation systems.
Automotive Systems: Air compressors, brake systems, and fluid transfer applications.
Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.
General Pneumatic Systems: Air conditioning, HVAC systems, and more.
The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.
Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.
The quick-connect design minimizes downtime and ensures a secure, leak-free connection.
Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.
A: It is a pneumatic component designed with an innovative rotating thread mechanism that allows the coupling to swivel 360 degrees. This provides flexibility and makes it easy to align and install connections in tight or complex spaces.
A: Nickel-plated brass provides superior durability and strong corrosion resistance compared to standard metals. It effectively protects the fitting against wear, moisture, chemical exposure, and high-pressure settings.
A: The push-to-connect design allows you to quickly insert the pneumatic tubing into the fitting without tools. It locks automatically to ensure a fast, secure, and leak-free connection, simplifying maintenance and installation.
A: These fittings have a pressure rating of 0-2.5Mpa and can operate within a wide temperature range of -40℃ to 250℃. The exact temperature limit depends on the material of the internal O-ring selected for your application.
A: They are widely compatible with industrial machinery (automation systems, pneumatic tools), automotive systems (air compressors, brake systems), manufacturing equipment (robotic arms, packaging machines), and general HVAC applications.
A: The sizes provided in the table are measured manually and are intended for reference. There may be minor deviations. We recommend contacting us or checking the physical sample before placing precision orders.
