Product Introduction

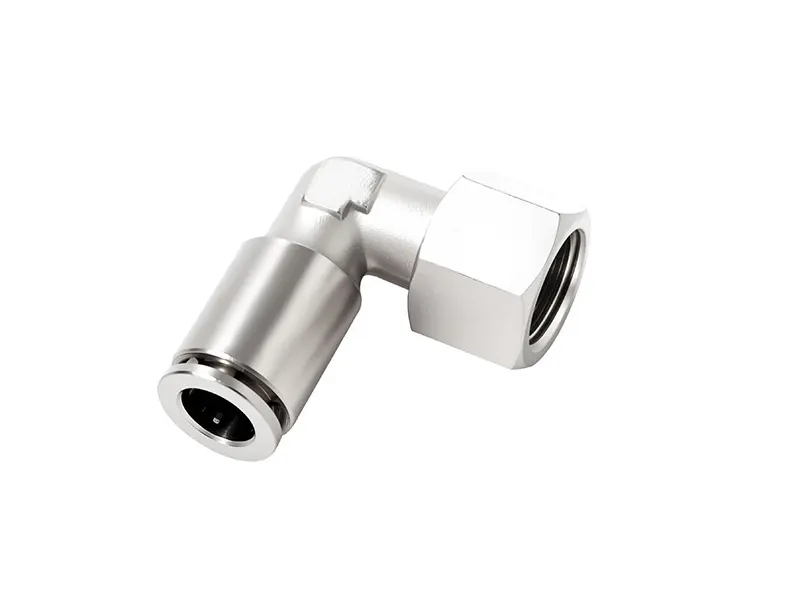

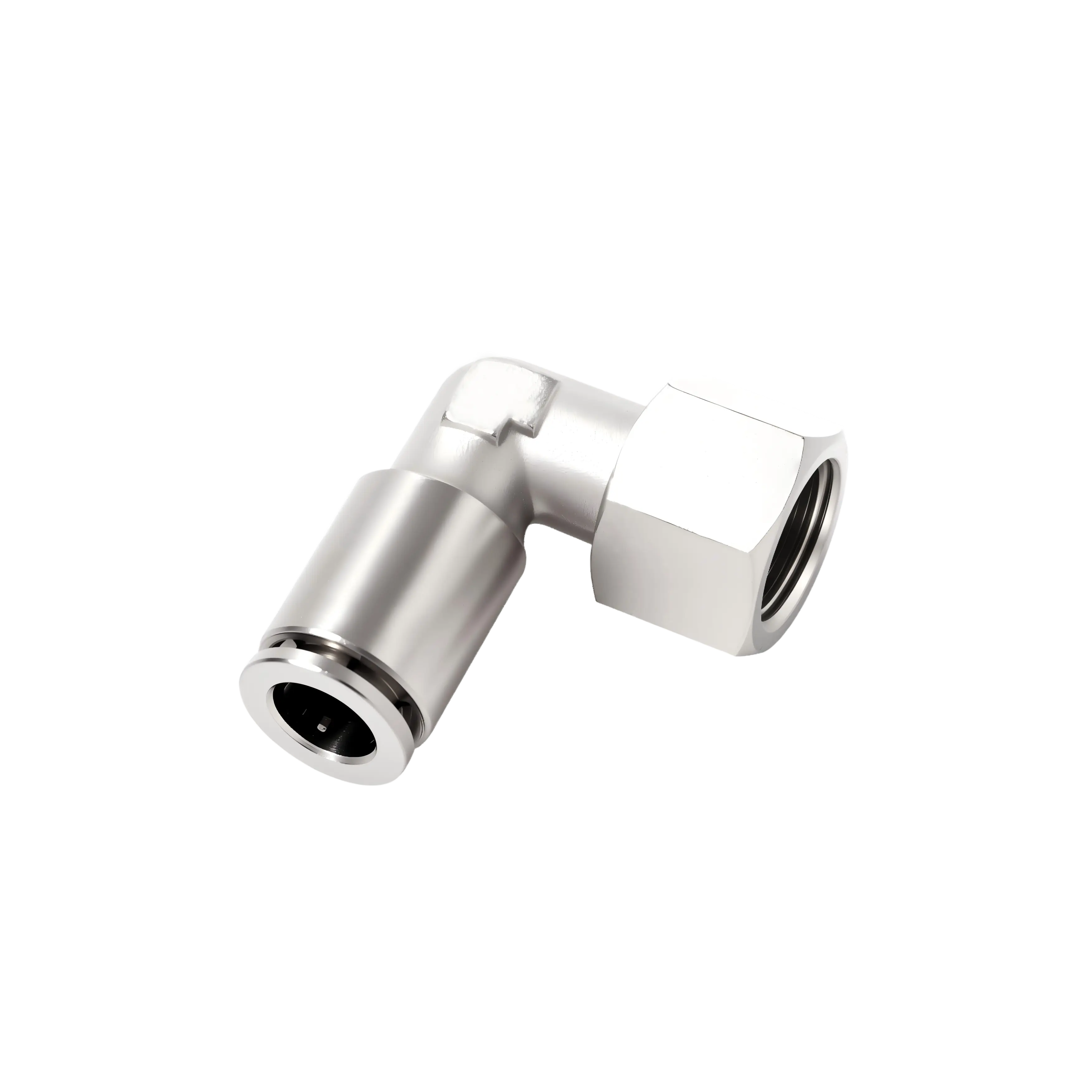

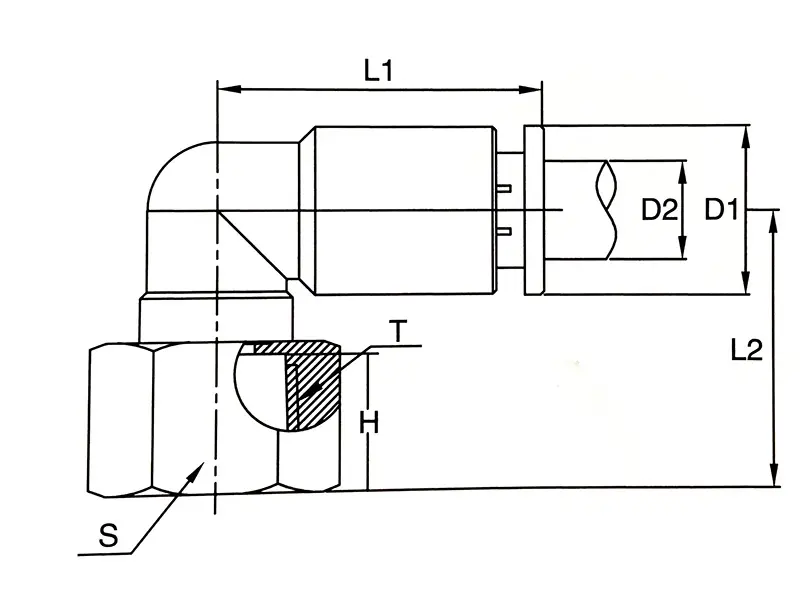

| PLF-Elbow female push in fittings (360° rotatable thread) |
L1 |
L2 |
H |
S |
T |
D1 |
D2 |
| NPLF6-01 |
24 |
21 |
8 |
14 |
G1/8 |
12 |
6 |
| NPLF6-02 |
24 |
23 |
9.5 |
16 |
G1/4 |
12 |
6 |
| NPLF6-03 |
24 |
25 |
11 |
21 |
G3/8 |
12 |
6 |
| NPLF6-04 |
24 |
26 |
13 |
24 |
G1/2 |
12 |
6 |
| NPLF8-01 |
26 |
22 |
8 |
14 |
G1/8 |
14 |
8 |
| NPLF8-02 |
26 |
24 |
9.5 |
16 |
G1/4 |
14 |
8 |
| NPLF8-03 |
26 |
26 |
11 |
21 |
G3/8 |
14 |
8 |
| NPLF8-04 |
26 |
27 |
13 |
24 |
G1/2 |
14 |
8 |
| NPLF10-01 |
29 |
23 |
8 |
14 |
G1/8 |
16 |
10 |
| NPLF10-02 |
29 |
25 |
9.5 |
16 |
G1/4 |
16 |
10 |
| NPLF10-03 |
29 |
27 |
11 |
21 |
G3/8 |
16 |
10 |
| NPLF10-04 |
29 |
28 |
13 |
24 |
G1/2 |
16 |
10 |
| NPLF12-02 |
31 |
26 |
9.5 |
16 |
G1/4 |
18 |
12 |
| NPLF12-03 |
31 |
27 |
11 |
21 |
G3/8 |
18 |
12 |
| NPLF12-04 |
31 |
28 |
13 |
24 |
G1/2 |
18 |
12 |
| NPLF8-M16*1.5 |
- |
- |
- |
- |
M16*1.5 |
- |
8 |
| NPLF10-M16*1.5 |
- |
- |
- |
- |
M16*1.5 |
- |
10 |
| NPLF12-M16*1.5 |
- |
- |
- |
- |
M16*1.5 |
- |
12 |
| The size is measured manually, there may be slight deviations, only for reference. |
Main Features
This 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow is a high-end fitting made for seamless operation, flexibility, and durability. It will upgrade your pneumatic systems. This elbow is designed to satisfy the greatest levels of quality and dependability, regardless of whether you work in manufacturing, automotive, or industrial settings.
360° Rotatable Design
The innovative rotating thread makes it easy to install and align in tight or challenging spaces, reducing stress on components and ensuring optimal alignment.
High-Quality Material
Made of sturdy brass with a robust nickel plating that prevents corrosion and survives exposure to high pressure, chemicals, and moisture.
Quick-Connect Mechanism
The push-in-connect design saves time during installation and maintenance by guaranteeing quick, safe, and leak-free connections.
Wide Compatibility
Perfectly compatible with various pneumatic systems and a wide range of tubing sizes, providing an adaptable option for multiple uses.
High-Pressure & Temp Resistance
Intended to operate consistently in challenging environments by performing dependably in a broad temperature range and under high pressure.
Applications
- Industrial Machinery: Pneumatic tools, assembly lines, and automation systems.
- Automotive Systems: Air compressors, brake systems, and fluid transfer applications.
- Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.
- General Pneumatic Systems: Air conditioning, HVAC systems, and more.
Why Choose Our Product?
- Enhanced Flexibility: The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.
- Durability: Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.
- Efficiency: The quick-connect design minimizes downtime and ensures a secure, leak-free connection.
- Versatility: Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.
Technical Specifications
Material
Brass with Nickel Plating
Rotation
360° Rotatable Thread
Connection Type
Push in
Pressure Rating
0-2.5Mpa
Temperature Range
-40-250℃ (according to the inside o-ring)
Installation Video
Frequently Asked Questions
What are the advantages of the 360° rotatable design?
The 360° rotatable thread allows for effortless alignment and installation, particularly in tight or confined environments. This design significantly decreases physical tension on the tubing and surrounding components, promoting stable airflow and reducing system wear.
How does nickel-plated brass construction improve performance?
The high-quality brass core provides structure and high-pressure tolerance, while the nickel plating provides superior corrosion protection. It prevents wear from chemical exposure, high moisture levels, and oxidative environments.
What is the pressure limit for these quick-connect elbows?
These fittings are engineered to operate reliably in high-pressure situations, supporting a standard operational pressure rating from 0 up to 2.5Mpa.
Can these fittings withstand extreme temperatures?
Yes, they perform dependably across a temperature range of -40°C to 250°C. Please note that the maximum limit depends on the material composition of the interior O-ring selected for your application.
What makes the connection mechanism convenient?
They feature a standard push-in mechanism. Inserting compatible tubing establishes a secure, leak-free connection instantly without tools, saving valuable setup time and simplifying maintenance processes.
In which industries are these elbow fittings typically used?
Due to their versatility, they are widely utilized in industrial machinery (automation systems, assembly lines), automotive applications (air compressors, brake systems), manufacturing machinery, and generic HVAC/air conditioning systems.
