T type middle G thread push in fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

Send Inquiry

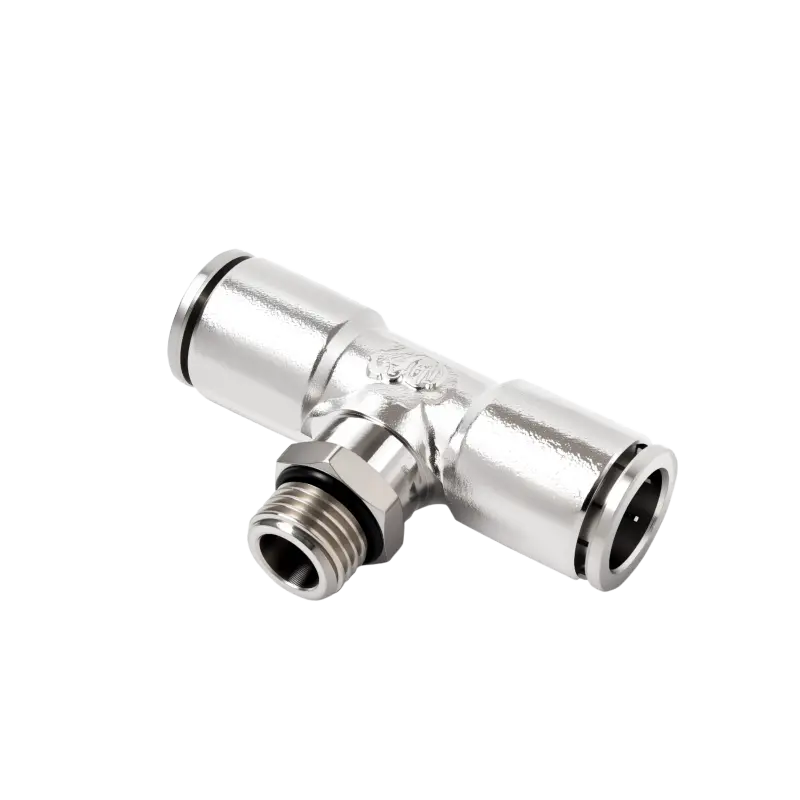

Product Description

PBG-T type middle G thread push in fitting model detail

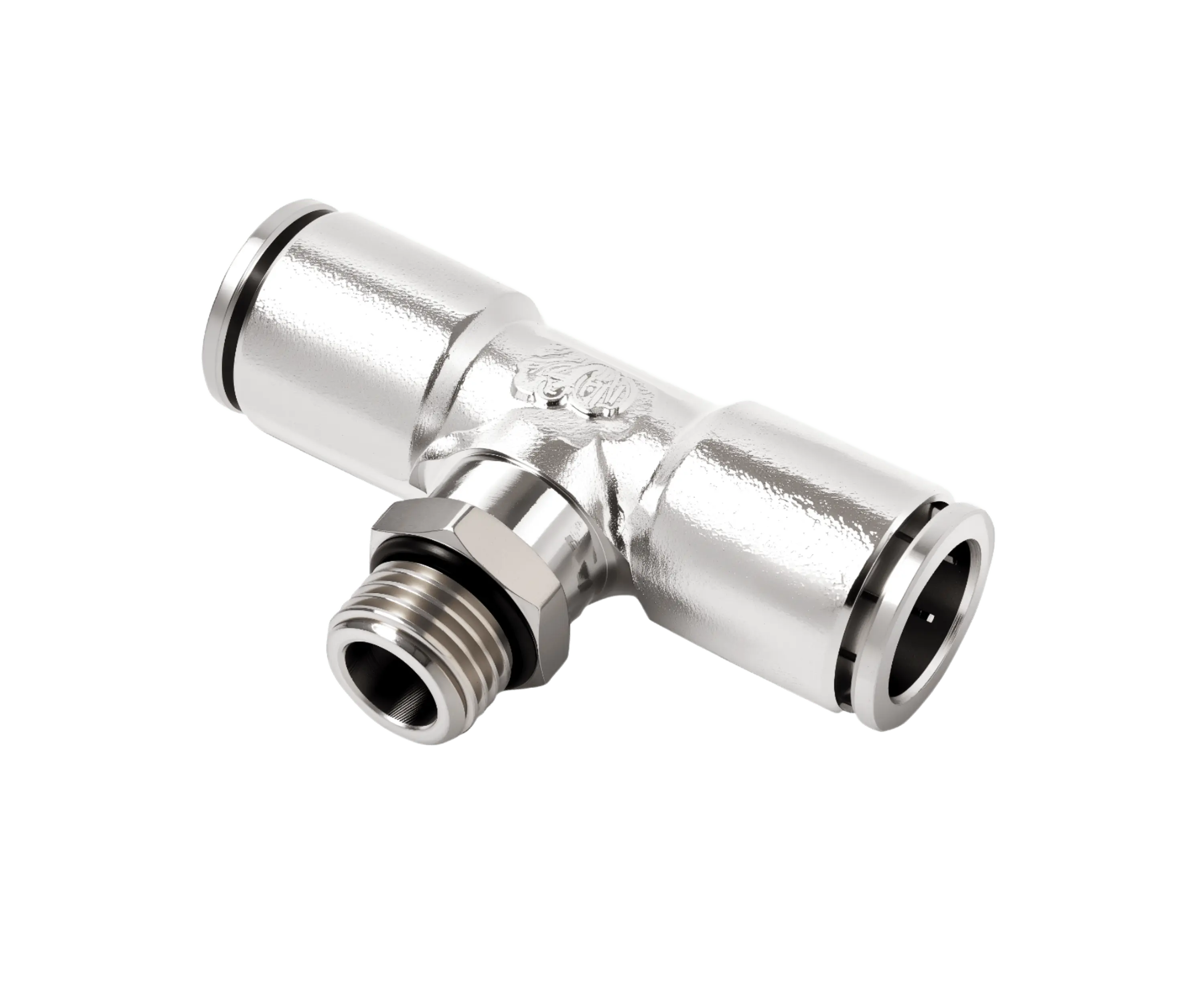

PBG-T type middle G thread push in fitting dimension chart

Model	L1	L2	H	T	S	D1	D2
NPBG6-01	35	22	8	G1/8	14	12	6
NPBG6-02	47	24	9	G1/4	17	12	6
NPBG6-03	52	26	11	G3/8	21	12	6
NPBG6-04	59	28	12.5	G1/2	26	12	6
NPBG8-01	35	23	8	G1/8	14	14	8
NPBG8-02	47	25	9	G1/4	17	14	8
NPBG8-03	52	27	11	G3/8	21	14	8
NPBG8-04	59	29	12.5	G1/2	26	14	8
NPBG10-01	35	24	8	G1/8	14	16	10
NPBG10-02	47	26	9	G1/4	17	16	10
NPBG10-03	52	28	11	G3/8	21	16	10
NPBG10-04	59	30	12.5	G1/2	26	16	10
NPBG12-01	35	25	8	G1/8	14	18	12
NPBG12-02	47	27	9	G1/4	17	18	12
NPBG12-03	52	29	11	G3/8	21	18	12
NPBG12-04	59	31	12.5	G1/2	26	18	12

* The size is measured manually, there may be slight deviations, only for reference.

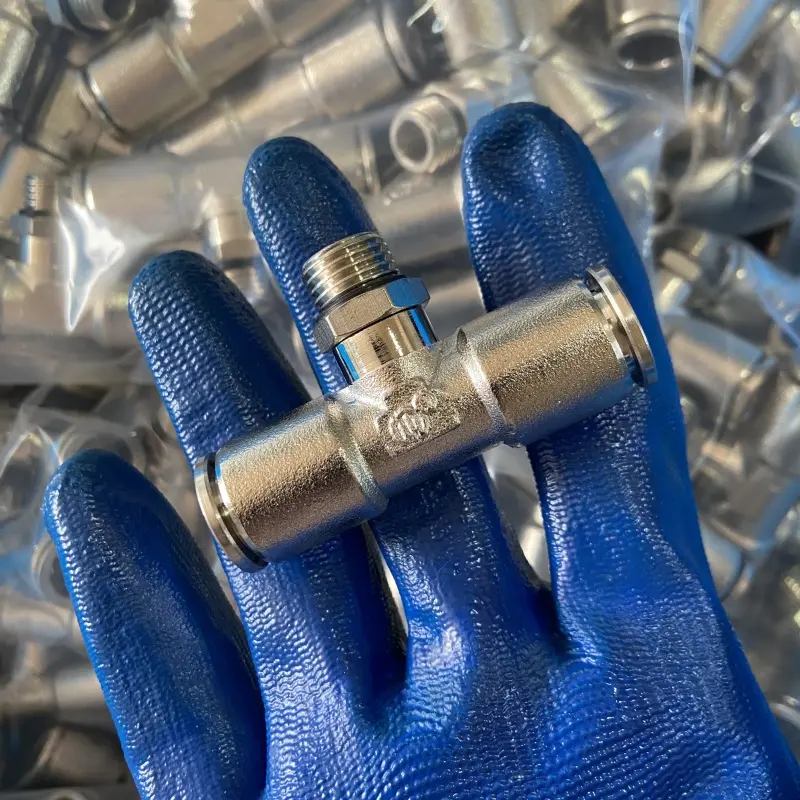

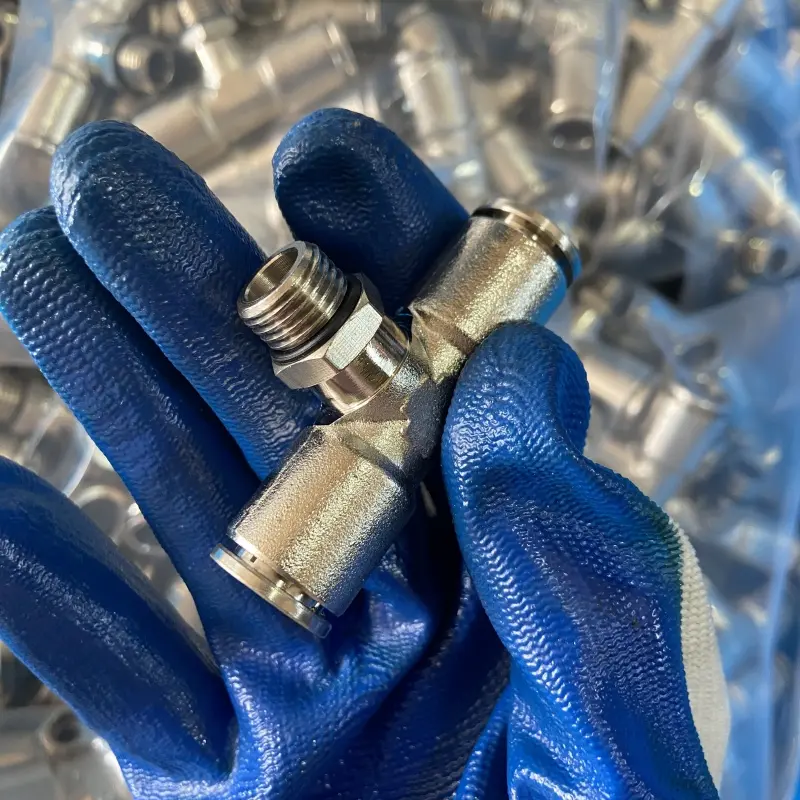

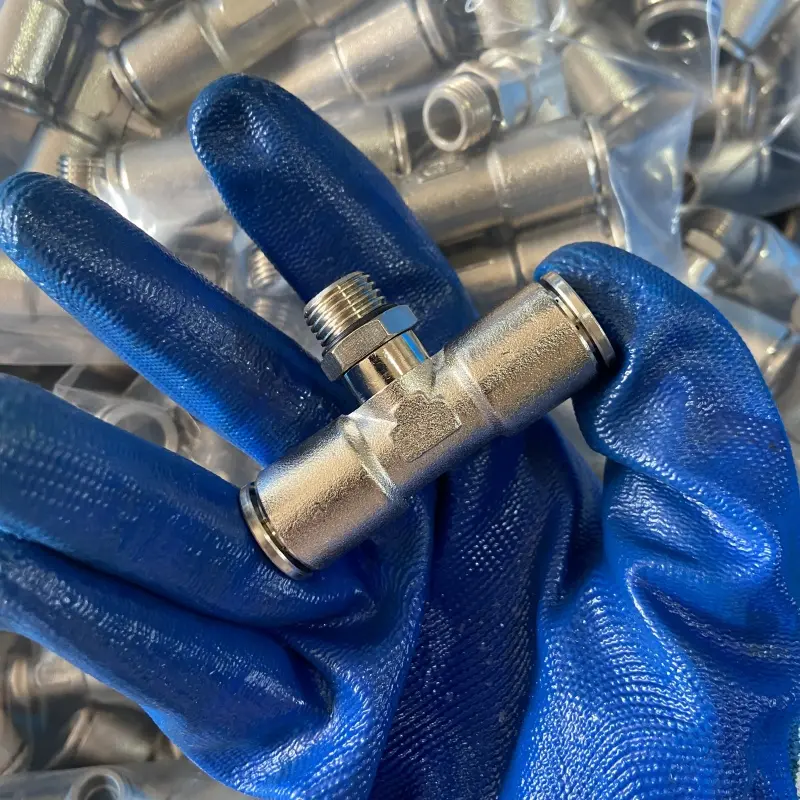

Main Features

The brass nickel-plated T type middle thread quick-connect pneumatic coupling is a component designed for rapid connection and disconnection of pneumatic pipelines. Its core features include the use of brass nickel-plated material and a quick-connect function, significantly enhancing work efficiency and safety.

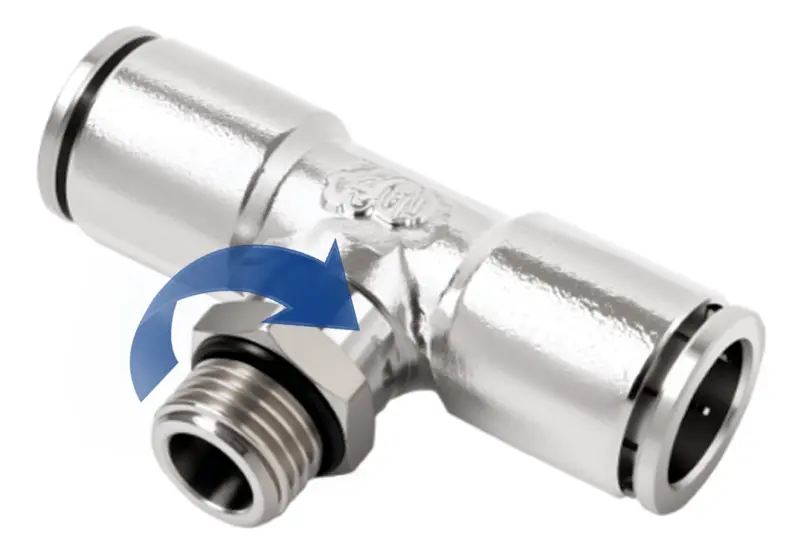

360° swirling Design

The innovative rotating thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.

High-Quality Material

Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.

Quick-Connect Mechanism

The push-to-connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.

Wide Compatibility

Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.

High-Pressure and Temperature Resistance

Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.

Applications

This quick-connect elbow is ideal for use in:
Industrial Machinery: Pneumatic tools, assembly lines, and automation systems.
Automotive Systems: Air compressors, brake systems, and fluid transfer applications.
Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.
General Pneumatic Systems: Air conditioning, HVAC systems, and more.

Why Choose Our Product?

Enhanced Flexibility

The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.

Durability

Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.

Efficiency

The quick-connect design minimizes downtime and ensures a secure, leak-free connection.

Versatility

Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.

Technical Specifications

Material Brass with Nickel Plating
Rotation 360° Rotatable
Connection Type Push in
Pressure Rating 0-2.5Mpa
Temperature Range -40 - 250℃ (according to the inside o-ring)

Installation Video

Frequently Asked Questions (FAQ)

What are the benefits of the nickel-plated brass construction?

The nickel plating provides excellent corrosion resistance against moisture and chemicals, ensuring the fitting remains durable and performs reliably under harsh environmental and high-pressure conditions.

How does the 360° rotating thread benefit installation?

The 360° rotation design allows you to easily adjust and align the piping direction during or after installation, which is especially useful in tight or complex system spaces and prevents tubing strain.

What is the maximum pressure rating for these quick-connect fittings?

These fittings are engineered to withstand working pressures ranging from 0 up to 2.5Mpa, making them suitable for high-pressure industrial environments.

What temperature range can these fittings handle safely?

They can operate safely in temperatures between -40℃ and 250℃, depending on the specifications of the inside sealing O-ring.

Are tools required for connecting or disconnecting the pneumatic tubing?

No, the push-in connection system is fully tool-free, facilitating rapid connection and disconnection, which reduces maintenance time and avoids system leaks.
