360Â° rotatable universal elbow push in fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

Send Inquiry

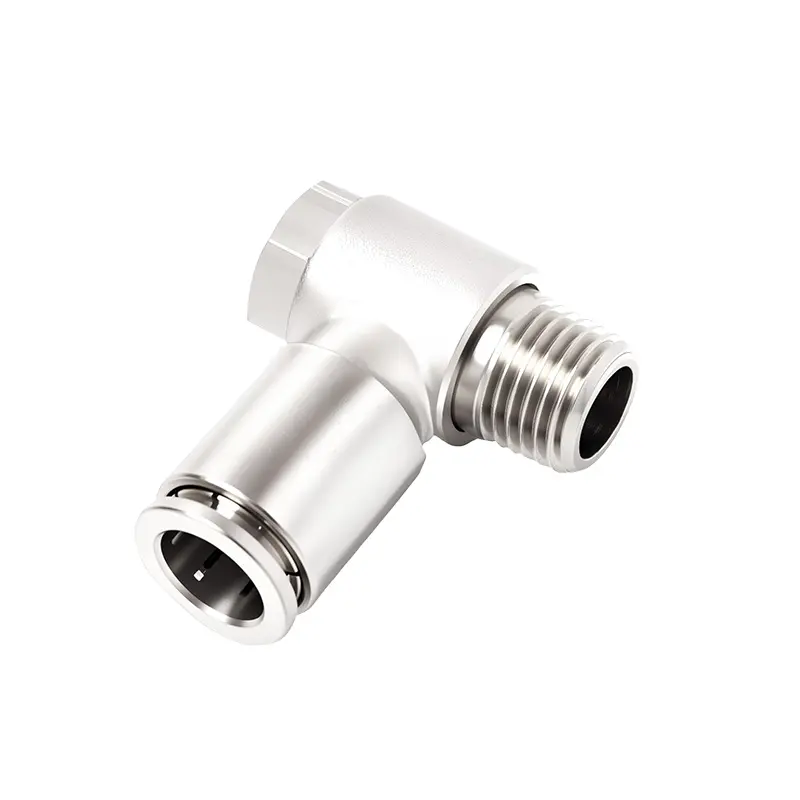

Product Description

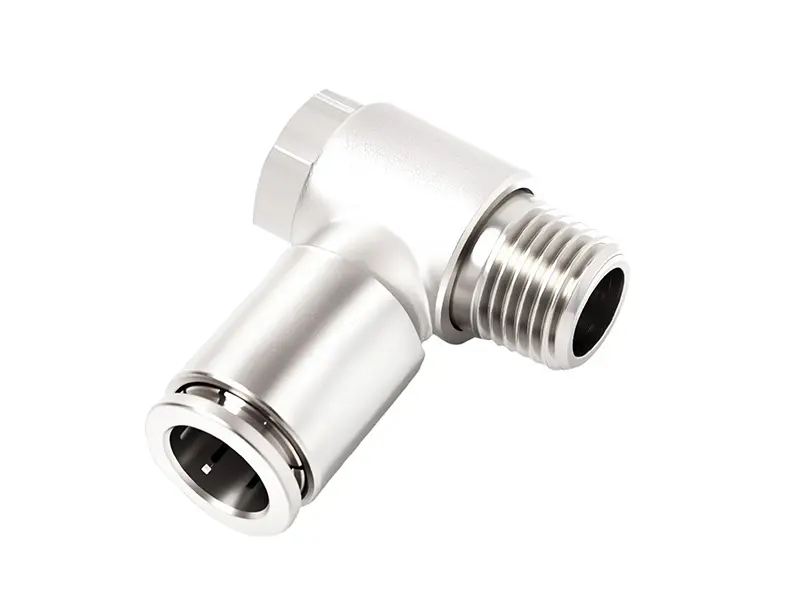

Product Introduction

PH-universal elbow push in fittings (360° rotatable) Specifications

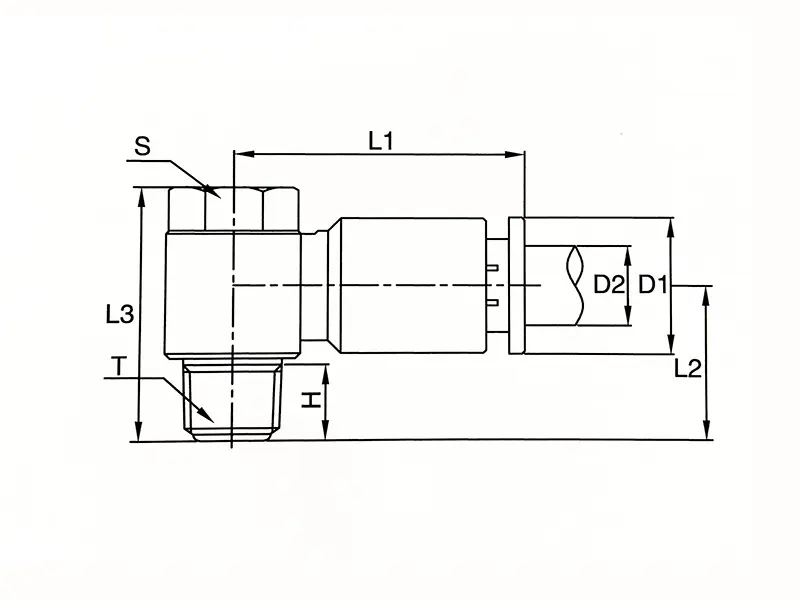

Model	L1	L3	H	S	T	D1	D2
NPH4-M5	22	19	4	8	M5	9	4
NPH6-01	29	28	8	12	R1/8	12	6
NPH6-02	30	31	10	15	R1/4	12	6
NPH6-03	33	36	11	19	R3/8	12	6
NPH6-04	34	39	14	22	R1/2	12	6
NPH8-01	30	28	8	12	R1/8	14	8
NPH8-02	31	31	10	15	R1/4	14	8
NPH8-03	34	36	11	19	R3/8	14	8
NPH8-04	36	39	14	22	R1/2	14	8
NPH10-01	32	29	8	12	R1/8	16	10
NPH10-02	33	32	10	15	R1/4	16	10
NPH10-03	36	37	11	19	R3/8	16	10
NPH10-04	38	41	14	22	R1/2	16	10
NPH12-01	33	29	8	12	R1/8	18	12
NPH12-02	33	33	10	15	R1/4	18	12
NPH12-03	38	38	11	19	R3/8	18	12
NPH12-04	40	41	14	22	R1/2	18	12
Note: Because the size is measured by hand, there can be some variations; this is merely for reference.

Main Features

Upgrade your pneumatic systems with our 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow, a premium fitting designed for flexibility, durability, and seamless performance. Whether you're working in industrial, automotive, or manufacturing environments, this elbow is engineered to meet the highest standards of quality and reliability.

360° Rotatable Design

The innovative rotating thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.

High-Quality Material

Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.

Quick-Connect Mechanism

The push-to-connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.

Wide Compatibility

Pneumatic systems and a range of tubing sizes are compatible, giving it an adaptable option for a number of uses.

High Resistance

Designed to function consistently in difficult environments by operating reliably in a broad temperature range and under high pressure.

Applications

Industrial Equipment: Automation systems, production lines, and pneumatic tools.

Automotive Systems: Air compressors, brake systems, and fluid transfer applications.

Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.

General Pneumatic Systems: Air conditioning, HVAC systems, and more.

Technical Specifications

Material Brass with Nickel Plating

Rotation 360° Rotatable

Connection Type Push in

Pressure Rating 0-2.5Mpa

Temperature Range -40 to 250°C (according to the internal O-ring)

Why Choose Our Product?

Enhanced Flexibility

The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.

Durability

Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.

Efficiency

The quick-connect design minimizes downtime and ensures a secure, leak-free connection.

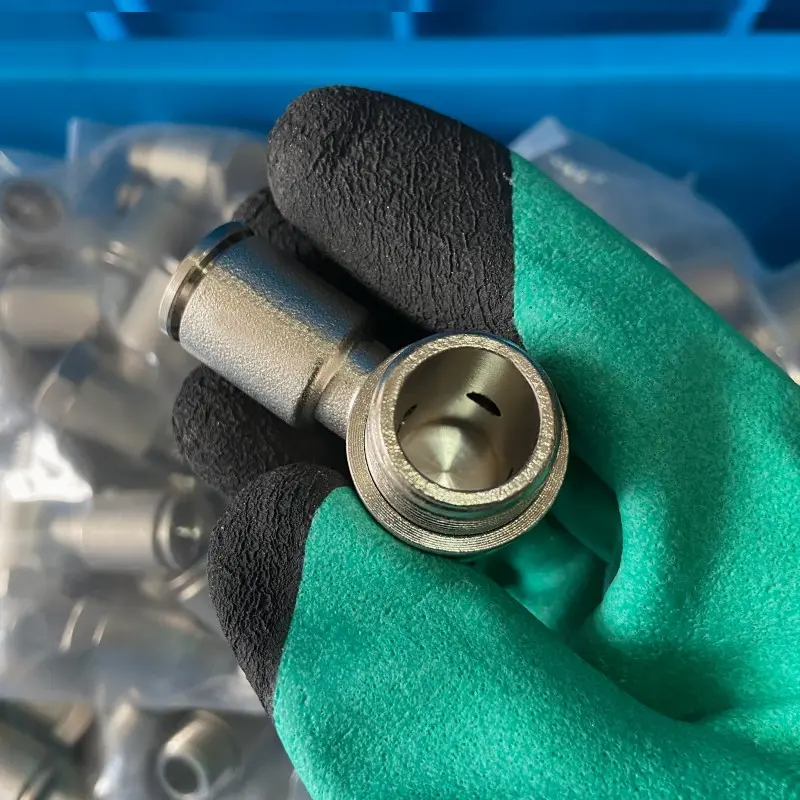

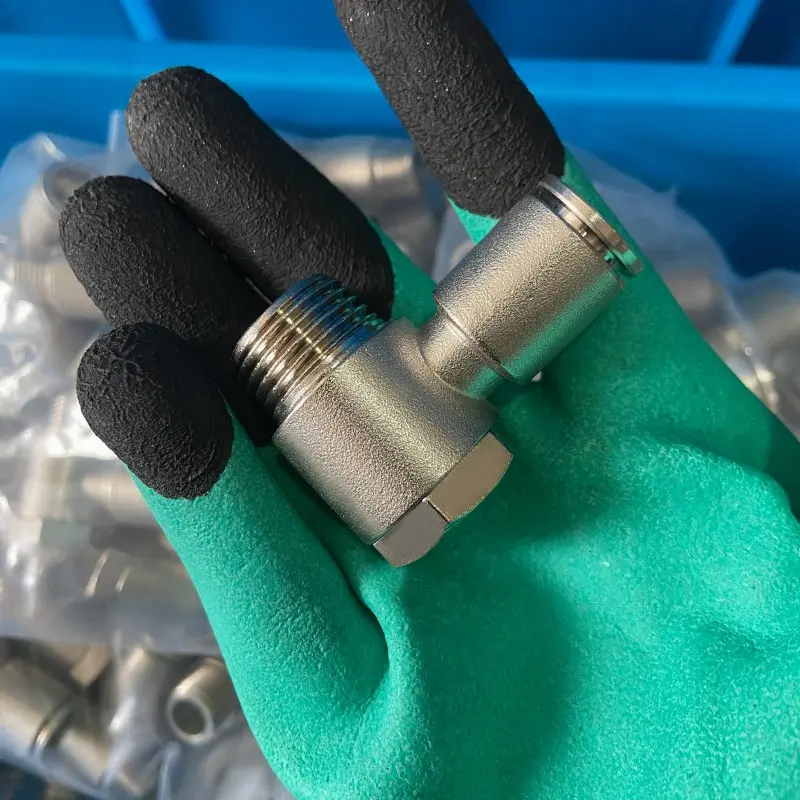

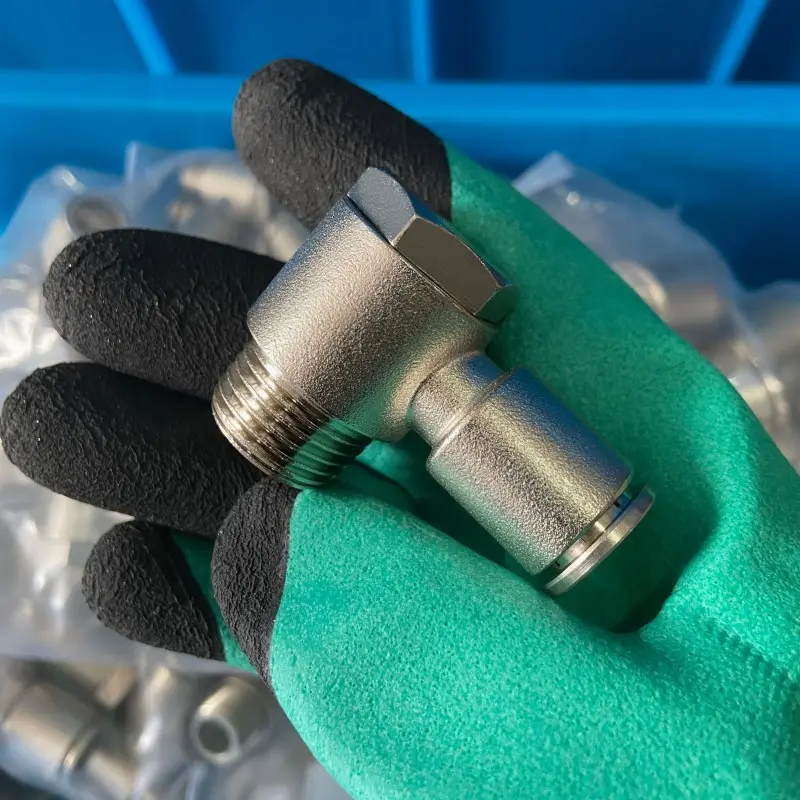

Product Gallery

Frequently Asked Questions (FAQ)

What is the pressure rating for these elbow fittings?

These quick-connect elbow fittings support an operating pressure range of 0 to 2.5 Mpa.

Are the fittings fully rotatable under pressure?

Yes, the 360° rotatable design allows the body of the fitting to rotate even after installation, which simplifies setup in tight spaces and relieves stress on the tubing.

What materials are these fittings constructed from?

They are constructed from premium brass with a high-grade nickel plating, offering excellent durability and superior resistance to corrosion and wear.

What temperatures can these pneumatic elbows tolerate?

They can operate reliably within a temperature range of -40°C to 250°C, depending primarily on the specifications of the inside O-ring installed.

Which systems are these quick-connect fittings compatible with?

They are highly compatible with various pneumatic tools, automation systems, automotive applications, HVAC equipment, and multiple standard tubing sizes.
