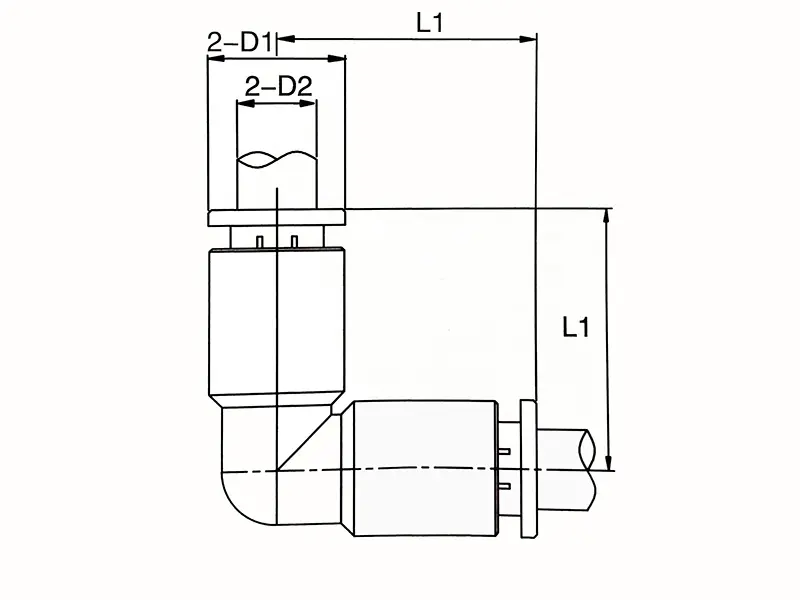

| PV-elbow push in fittings | Model | L1 | D1 | D2 |
|---|---|---|---|---|
|
NPV4 | 18 | 9 | 4 |
| NPV6 | 24 | 12 | 6 | |
| NPV8 | 26 | 14 | 8 | |
| NPV10 | 30 | 16 | 10 | |
| NPV12 | 32 | 18 | 12 | |
| Note: The size is measured manually and may have minor deviations, so it is for reference only. | ||||

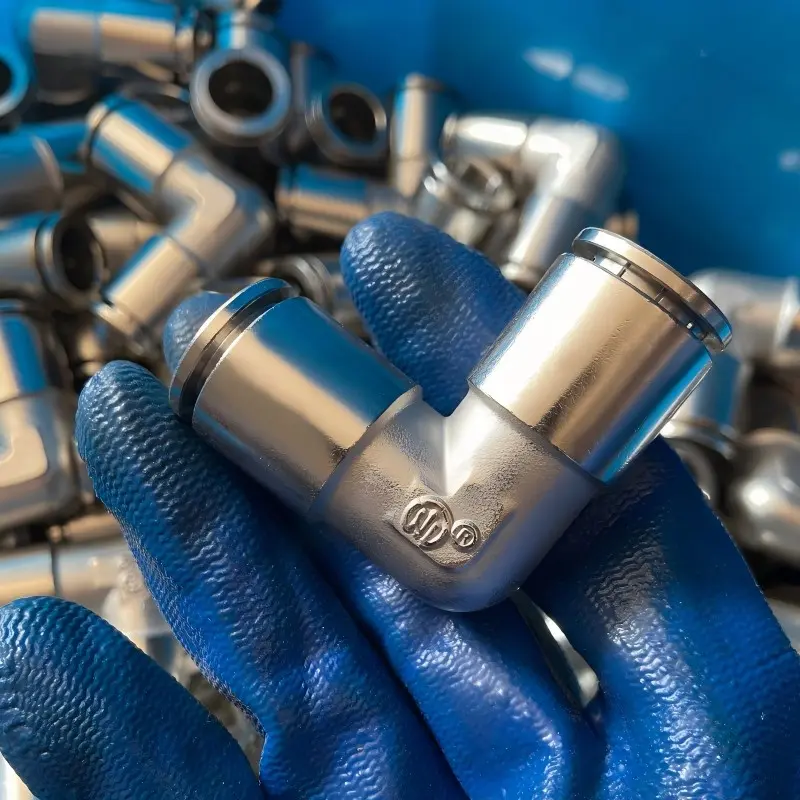

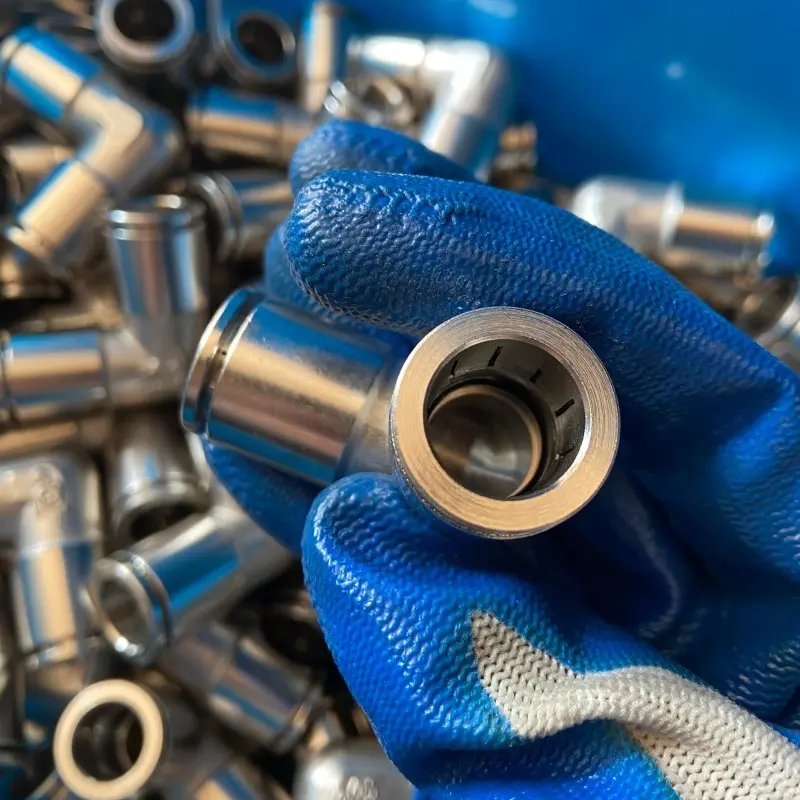

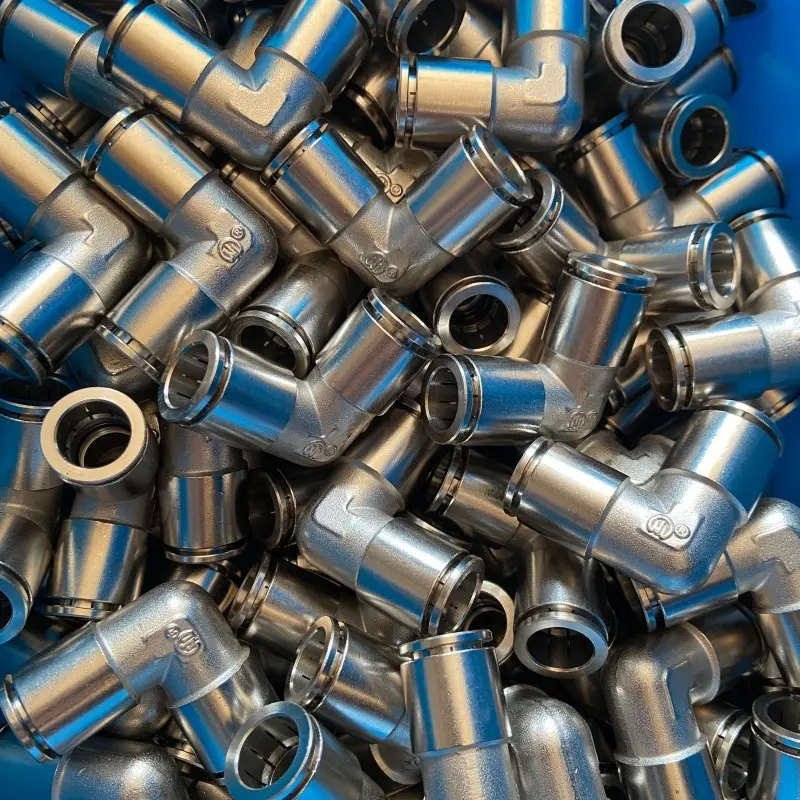

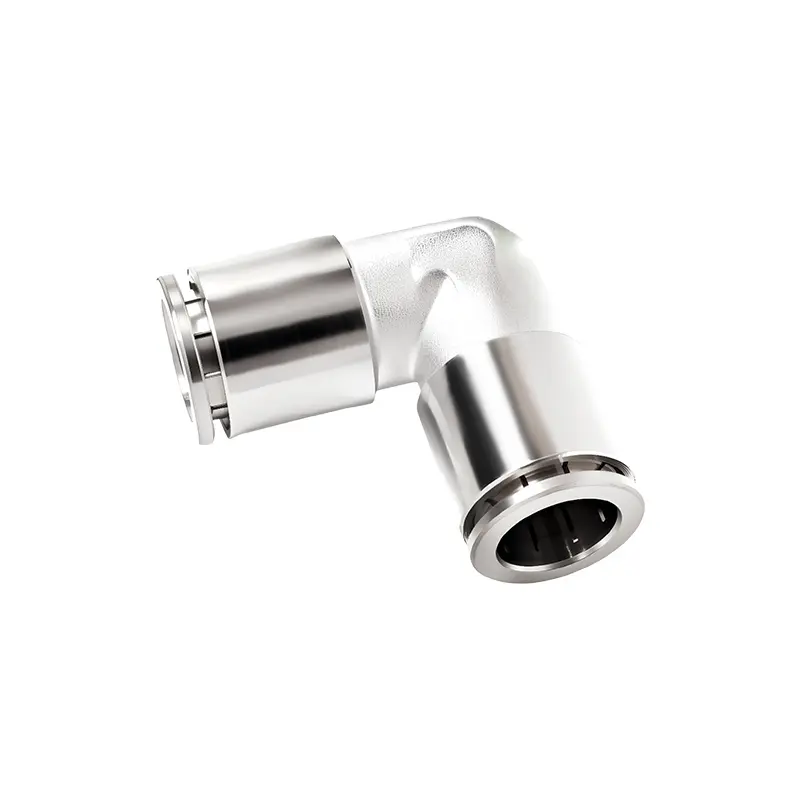

The brass nickel-plated elbow quick-connect pneumatic coupling is a component designed for rapid connection and disconnection of pneumatic pipelines. Its core features include the use of brass nickel-plated material and a quick-connect function, significantly enhancing work efficiency and safety.
It utilizes a button insertion design, enabling rapid connecting and disconnecting without tools, which effectively reduces installation and maintenance time.
Equipped with high-quality sealing rings, the connector can maintain excellent sealing performance even in high-pressure and high-temperature environments, effectively preventing leakage.
Crafted from H59-1 brass, it is corrosion and wear resistant. Nickel plating further enhances its corrosion resistance, increases surface hardness, and extends the coupling's lifespan.
Featuring comprehensive specifications to accommodate the assembly requirements of diverse threaded and pipe dimensions, boosting overall system compatibility.
Suitable for the transmission of various media such as water, oil, gas, and other compatible fluids.
Widely used in automation equipment, pneumatic tools, medical devices, food and beverage industry, and electronics.
The brass nickel-plated elbow quick-connect pneumatic fitting is a versatile and reliable component that offers numerous advantages, including quick-connect functionality, reliable sealing, and strong corrosion resistance. By selecting the appropriate coupling for your specific needs, you can enhance the efficiency, safety, and longevity of your pneumatic system.
