T type lateral thread push on fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

Send Inquiry

Product Description

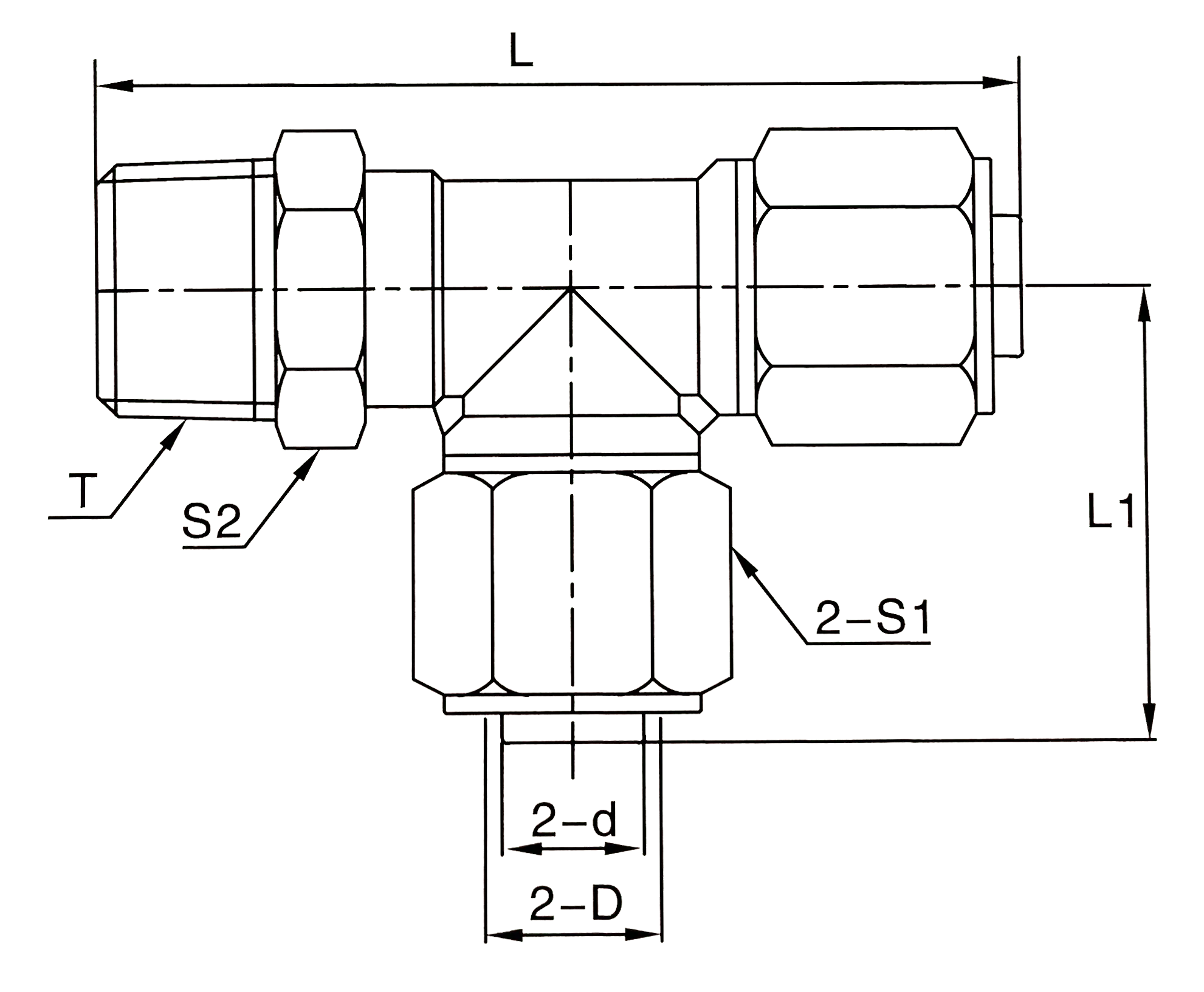

PD-T type lateral thread push on fittings type 1

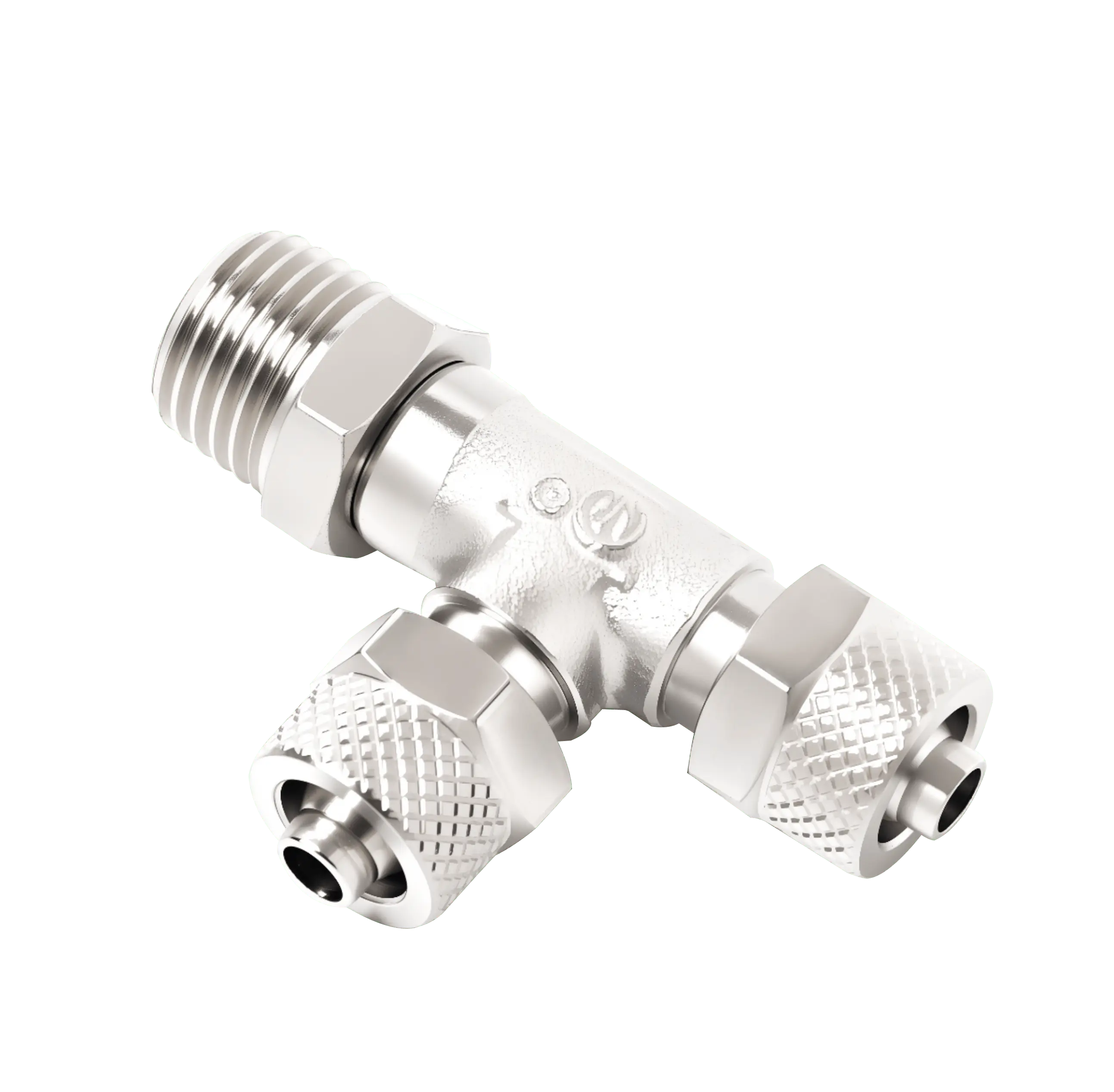

PD-T type lateral thread push on fittings type 2

Model	L	L1	S1	S2	T	D
NKPD6-01	40	20	12	12	R1/8	6
NKPD6-02	41	20	12	14	R1/4	6
NKPD6-03	42	20	12	17	R3/8	6
NKPD6-04	43	20	12	21	R1/2	6
NKPD8-01	41	21	13	12	R1/8	8
NKPD8-02	42	21	13	14	R1/4	8
NKPD8-03	43	21	13	17	R3/8	8
NKPD8-04	44	21	13	21	R1/2	8
NKPD10-0	50	24	15	12	R1/8	10
NKPD10-02	51	24	15	14	R1/4	10
NKPD10-03	52	24	15	17	R3/8	10
NKPD10-04	53	24	15	21	R1/2	10
NKPD12-01	51	25	17	12	R1/8	12
NKPD12-02	52	25	17	14	R1/4	12
NKPD12-03	53	25	17	17	R3/8	12
NKPD12-04	54	25	17	21	R1/2	12

The size is measured manually, there may be slight deviations, only for reference.

Main features

Upgrade your pneumatic systems with our 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow, a premium fitting designed for flexibility, durability, and seamless performance. Whether you're working in industrial, automotive, or manufacturing environments, this elbow is engineered to meet the highest standards of quality and reliability.

360° Rotatable Design

The innovative rotating thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.

High-Quality Material

Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.

Quick-Connect Mechanism

The push on connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.

Wide Compatibility

Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.

High-Pressure and Temperature Resistance

Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.

Applications

This quick-connect elbow is ideal for use in:
• Industrial Machinery: Pneumatic tools, assembly lines, and automation systems.
• Automotive Systems: Air compressors, brake systems, and fluid transfer applications.
• Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.
• General Pneumatic Systems: Air conditioning, HVAC systems, and more.

Why Choose Our Product?

Enhanced Flexibility

The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.

Durability

Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.

Efficiency

The quick-connect design minimizes downtime and ensures a secure, leak-free connection.

Versatility

Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.

Technical Specifications

Material: Brass with Nickel Plating

Rotation: 360° Rotatable Thread

Connection Type: Push on

Pressure Rating: 0-2.5Mpa

Temperature Range: -40 - 250℃ (according to the inside o-ring)

Frequently Asked Questions

What are the main advantages of the 360° rotatable design?

The 360° rotatable thread allows for easy alignment and stress-free installation in tight or complex spaces. It minimizes mechanical tension on connected lines and ensures optimal positioning for consistent airflow.

What material is used to manufacture these pneumatic elbows?

They are constructed using high-quality brass coated with a corrosion-resistant nickel plating. This makes them highly durable and resistant to wear, moisture, and chemical exposure in harsh environments.

What range of pressure and temperature can these fittings handle?

These fittings feature a pressure rating of 0-2.5 Mpa and can withstand temperatures ranging from -40 to 250℃, depending on the specifications of the inside o-ring.

How does the quick-connect mechanism work?

The push-on connection design enables secure, fast, and completely leak-free tubing insertion without requiring specialized tools, thereby reducing maintenance downtime.

Where are these quick-connect elbows typically applied?

They are commonly used in industrial machinery (assembly lines, automation systems), automotive setups (air compressors, fluid transfer), manufacturing plants (conveyors, packaging equipment), and general pneumatic setups like HVAC.
