Product Introduction

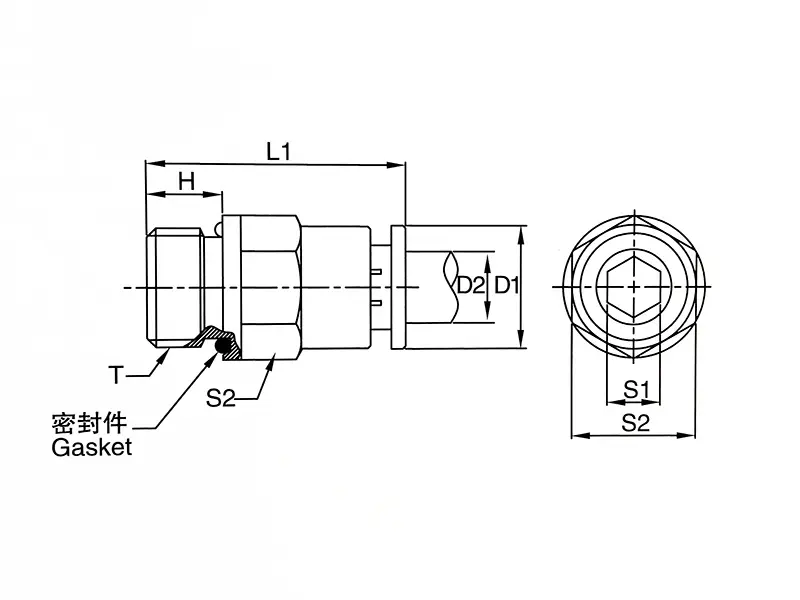

SL-flow control push in throttle Specification
| Model |
L |
H |
T |
S1 |
S2 |
D*d |
| NKPCG6-01 | 24 | 7 | G1/8 | 12 | 14 | 6*4 |
| NKPCG6-02 | 26 | 9 | G1/4 | 12 | 17 | 6*4 |
| NKPCG6-03 | 27 | 11 | G3/8 | 12 | 21 | 6*4 |
| NKPCG6-04 | 29 | 13 | G1/2 | 12 | 24 | 6*4 |
| NKPCG8-01 | 24 | 7 | G1/8 | 13 | 14 | 8*5 |
| NKPCG8-02 | 26 | 9 | G1/4 | 13 | 17 | 8*5 |
| NKPCG8-03 | 28 | 11 | G3/8 | 13 | 21 | 8*5 |
| NKPCG8-04 | 29 | 13 | G1/2 | 13 | 24 | 8*5 |
| NKPCG10-0 | 26 | 7 | G1/8 | 15 | 17 | 10*6.5 |
| NKPCG10-02 | 28 | 9 | G1/4 | 15 | 17 | 10*6.5 |
| NKPCG10-03 | 31 | 11 | G3/8 | 15 | 21 | 10*6.5 |
| NKPCG10-04 | 32 | 13 | G1/2 | 15 | 24 | 10*6.5 |
| NKPCG12-01 | 27 | 7 | G1/8 | 17 | 17 | 12*8 |
| NKPCG12-02 | 29 | 9 | G1/4 | 17 | 19 | 12*8 |
| NKPCG12-03 | 32 | 11 | G3/8 | 17 | 21 | 12*8 |
| NKPCG12-04 | 33 | 13 | G1/2 | 17 | 24 | 12*8 |
| NKPCG16-04 | 36 | 13 | G1/2 | 22 | 27 | 16*12 |
| NKPC6-M8*1 | - | - | - | - | - | - |
| NKPC8-M8*1 | - | - | - | - | - | - |
| NKPC6-M10*1 | - | - | - | - | - | - |
| NKPC8-M10*1 | - | - | - | - | - | - |
| NKPC8-M12*1.25 | - | - | - | - | - | - |
| NKPC10-M12*1.25 | - | - | - | - | - | - |
| NKPC12-M16*1.5 | - | - | - | - | - | - |
| NKPC16-M16*1.5 | - | - | - | - | - | - |
The size is measured manually, there may be slight deviations, only for reference.
Main features

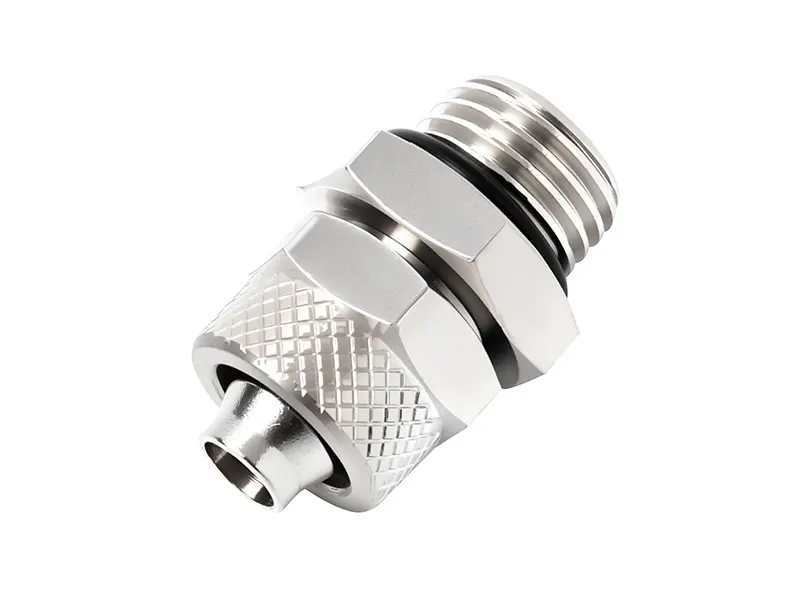

Brass nickel-plated straight quick-connect pneumatic couplings are designed for quick connection and disconnection of pneumatic pipelines. They feature brass nickel-plating and a quick-connect function, improving work efficiency and safety.
- Longevity: The copper-nickel material ensures durable performance in harsh conditions.
- Easy Installation: The quick-connect design simplifies installation, saving time and labor.
- Versatility: Suitable for various applications like water, air, and gas systems.
- Corrosion Resistance: Nickel plating boosts resistance to rust and corrosion, extending lifespan.
- Wide Temperature Range: Reliable performance in extreme cold and high-heat environments.
- 1Preparation: Ensure pipes or tubes are clean and free of debris.

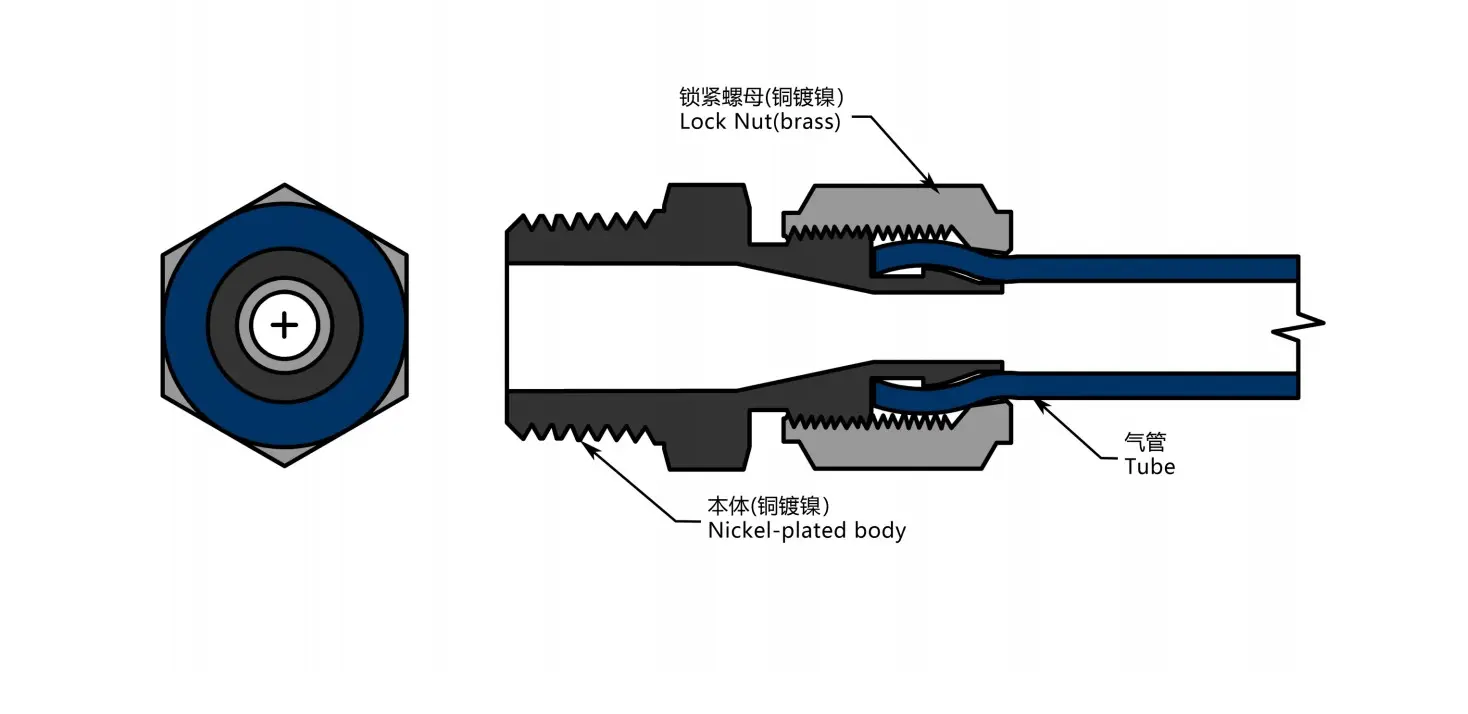

- 2Connection: Insert the pipe into the fitting and hand-tighten the lock nut. Use a wrench for a secure seal if needed.
- 3Inspection: Check for leaks and connection security after installation.
- 4Maintenance: Regularly inspect the fitting for wear or damage, especially in high-pressure or high-temperature applications.
Brass nickel-plated straight quick-connect pneumatic fittings are versatile and reliable. They offer quick-connect functionality, reliable sealing, and strong corrosion resistance. Their robust construction and easy installation make them ideal for various industrial applications. Selecting the appropriate coupling enhances pneumatic system efficiency, safety, and longevity.
